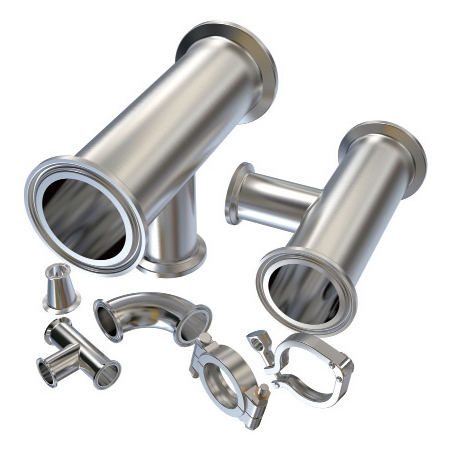

The easiness that S-line fittings present as far as assembly and dismantling of process lines and equipment are concerned can not be matched.
Gaskets for S-line Fittings are available in several different materials,EPDM, Silicone, FPM, and PTFE.

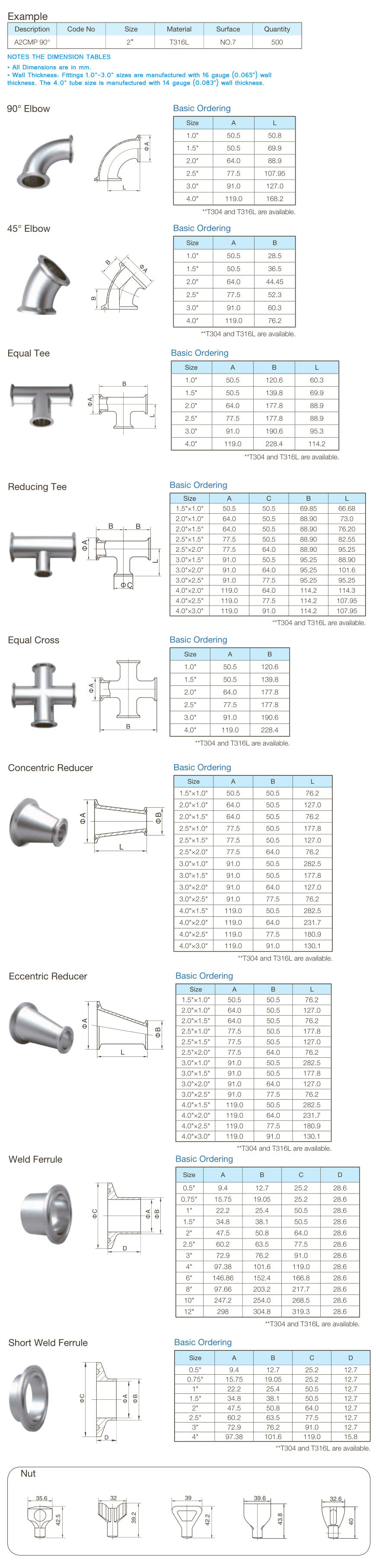

S-LINE FITTINGS SPECIFICATIONS....
Size Range: 1/2"OD through 12" OD
Materials: T304, T316L
Surface Finish:
Mechanically Polished
Internal 20Ra (0.51μm), External 32Ra (0.8μm)
No. 7 - ID & OD
No. 5 - OD only
No. 3 - ID only
No. 1 - unpolished
Custom - built upon request
