Name:
|

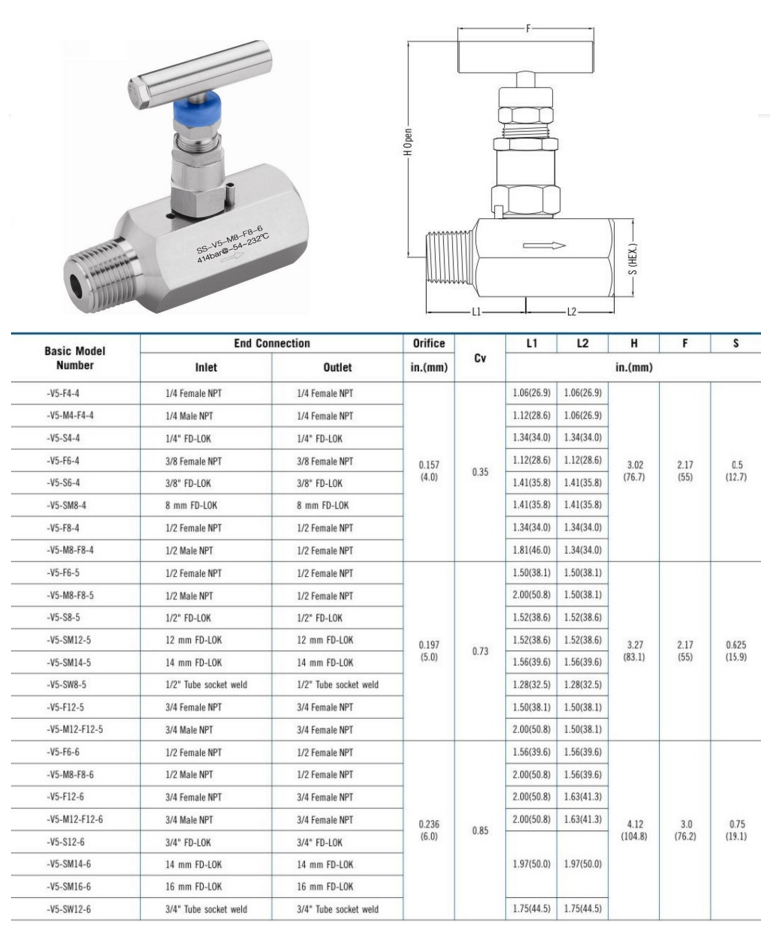

Instrumentation Hexagonal Bar Stock Needle Valves for Oil Refinery
|
|
Pressure:
|
High Pressure
|
|
Power:
|
Manual
|
|
Material:
|
Stainless Steel
|
|
Temperature of Media:
|
High Temperature
|
|
Media:
|
Base
|
|
Port Size:
|
1/8
|
|
Place of Origin:
|
|
Material
|
316ss, 316Lss, 304ss and other special materials
|
|
Technics
|
Forged bar stock
|
|
Connection
|
Male/Female NPT, G, R, BSPP, BSPT, ISO, Weld, double ferrule
|
|
Type
|
Straight, Angle
|
Features:
1. Pressure:
up to 6000 psig (414 bar) for standard series.
up to 10000psi(689 bar ) for high pressure series.
2. Temperature:
PTFE Packing: -65 °F to 450 °F ( -54 °C to 232 °C)
PEEK Packing: -65 °F to 600 °F ( -54 °C to 315 °C)
Graphite Packing: -65 °F to 1200 °F ( -54 °C to 649 °C )
3. End Connection: NPT, BSPT, Socket Weld, Butt Weld, Tube Fitting.
4. Size: 1/8" to 1"
5. Panel mounting on request.
6. All Valves are 100% factory tested.
Quality Assurance: Within one year after buying our products, if any quality problem that verified to be our responsibility, we will replace the defective products!
