Name:
|

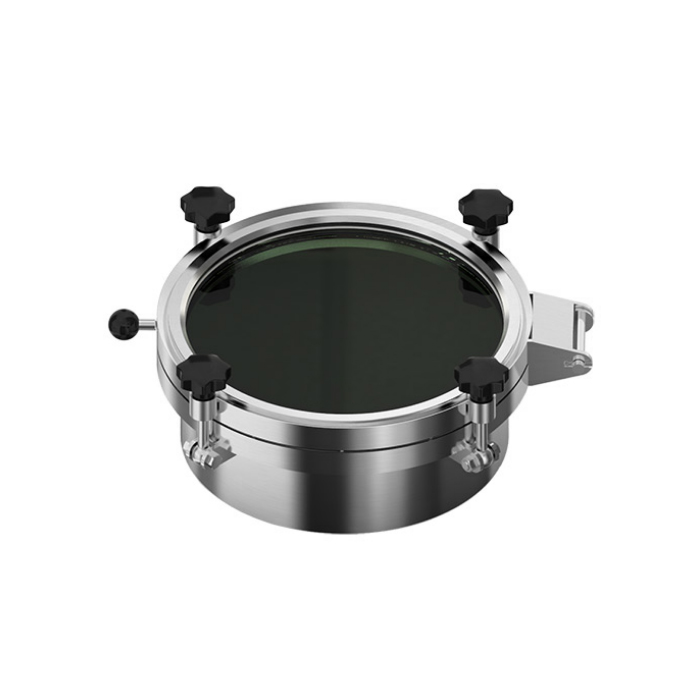

Glass pressure circular manhole covers
|
|
Material:
|
1.4404/1.4301, SS304/SS316L
|
|
Outside Surface:
|
Stain or mirror polish
|
|
Availably size:
|
200mm~ 600 mm
|
|
Height Option:
|
100,120,150mm
|
|
Pressure:
|
2~5 bar;Can be 10 bar if customer requires
|
|
Shape:
|
Circular manhole cover
|
|
Application Scope:
|
Widely used for pressure vessel in the fields of food,beverage,etc
|
|
Design:
|
pressure manhole cover; Outside opening manhole cover; plastic handwheel or stainless steel handwheel.
|
|
Packaging Details:
|
Bubble pack for each. Outside packing are carton or plywood cases. Or as per the request of customers.
|

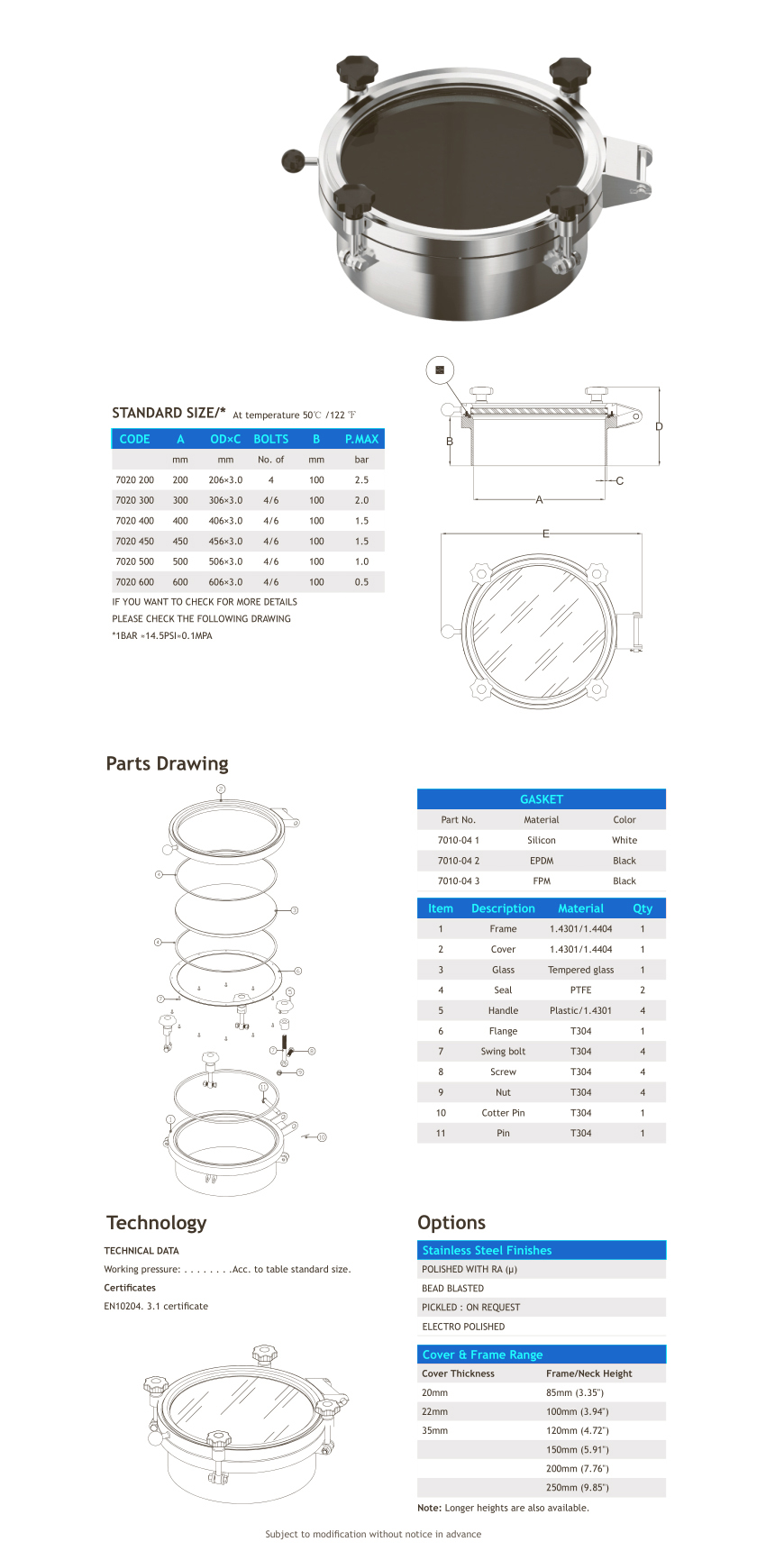

Standard Design
Wetted material 1.4301/1.4404
Cover material 1.4301/1.4404
Silicone-gasket
4 Plastic handle
Tempered glass
With flange
Outward-open
Surface matte-finish
OD 600mm
Full welding technology
Options
Optional wetted materials 304,316,316L
Various surface qualities 0.4μm-0.8μm
Various surface finish: Mirror Polish, Sandblasted, etc.
Various handles: Stainless steel, etc.
Various gasket qualities
Neck thickness can be modified
Height can be modified
OD optional for 200/300/400/450/500
Gasket material optional for EPDM, FPM
