Nominal
pipe size
DN(in)
|

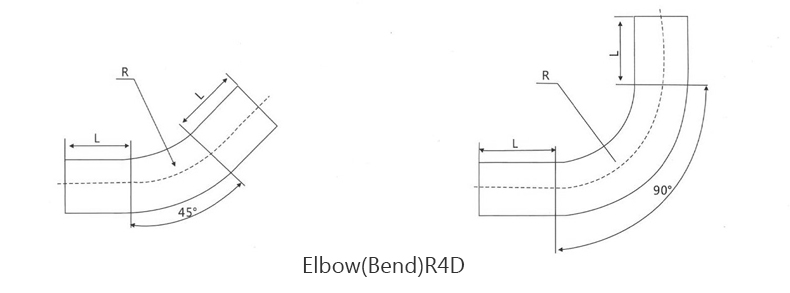

Dimensions
|
|
Outside diameter
at bevel:D
|
Bend radius:R
Straight:L
|
|
DN
|
mm
|
mm
|
|
80
|
89
|
R=320
L=350
|
|
100
|
108
|
R=400
L=350
|
|
125
|
133
|
R=500
L=350
|
|
150
|
159
|
R=600
L=350
|
|
200
|
219
|
R=800
L=700
|
|
250
|
273
|
R=1000
L=700
|
|
300
|
325
|
R=1250
L=700
|
|
350
|
377
|
R=1400
L=700
|
|
400
|
426
|
R=1600
L=700
|
|
Wall thickness:t
|
Approx weight
|
|
Sch.No
|
T
|
45°
|
90°
|
|
|
m
|
kg
|
kg
|
|
40
|
5.6
|
11.0
|
13.8
|
|
80
|
8.0
|
15.2
|
19.2
|
|
40
|
5.9
|
15.1
|
19.7
|
|
80
|
8.8
|
21.8
|
28.6
|
|
40
|
6.3
|
21.5
|
29.2
|
|
80
|
10.0
|
33.1
|
45.1
|
|
40
|
7.1
|
33.2
|
43.7
|
|
80
|
11.0
|
47.0
|
65.9
|
|
40
|
8.0
|
84.0
|
111
|
|
80
|
12.5
|
129
|
169
|
|
40
|
8.8
|
125
|
170
|
|
80
|
16.0
|
222
|
301
|
|
40
|
10.0
|
182
|
255
|
|
80
|
17.5
|
311
|
436
|
|
40
|
11.0
|
248
|
357
|
|
80
|
20.0
|
440
|
634
|
|
40
|
12.5
|
339
|
499
|
|
80
|
22.2
|
587
|
865
|
