Name:
|

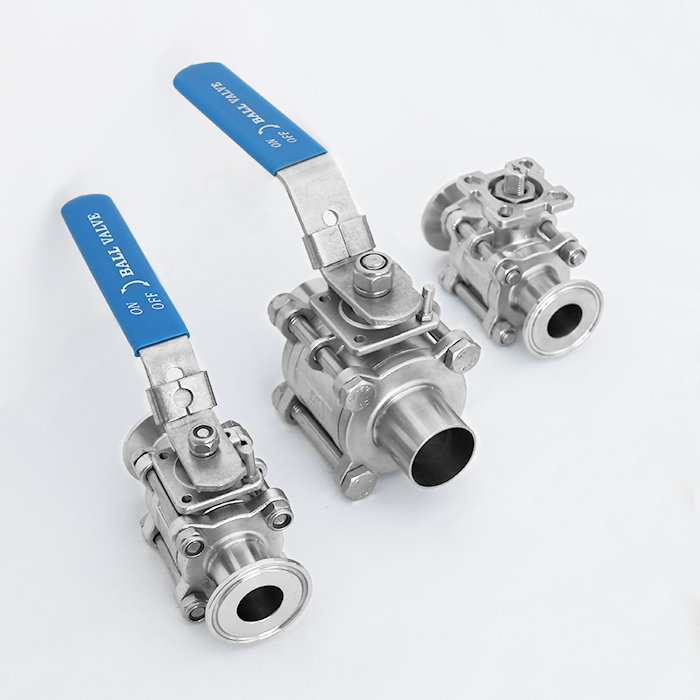

Tri-clamp Forged Stainless Steel 3 Piece Ball Valves
|
|
Standard or Nonstandard:
|
Standard
|
|
Structure:
|
Ball
|
|
Pressure:
|
Medium Pressure
|
|
Power:
|
Manual
|
|
Material:
|
Stainless Steel
|
|
Temperature of Media:
|
Medium Temperature
|
|
Media:
|
Water
|
|
Place of Origin:
|
Zhejiang, China (Mainland)
|
|
Application:
|
dairy, beer, water, chemical, pharmacy
|
|
Body material:
|
stainless steel
|
PRODUCT DESCRIPTION
|
Standard
|
SMS,DIN,AAA,IDF,ISO,RJT
|
|
Material Quality
|
SS304,SS304L,SS316,SS316L
|
|
Connection ends
|
Clamp End, Weld end, Male end and Female end
|
|
Port Size
|
1/2"~4",DN10~DN100
|
|
Gasket
|
EPDM, Silicone, Viton etc
|
|
Ball Seat
|
PTFE
|
|
Manual drive
|
Sensor, Muti-positon handle level, Pull handle level
|
|
Pneumatic drive
|
Aluminum electric/Pneumatic actuator, Stainless steel electric/Pneumatic actuator
|
|
Intelligent C top controls
|
AS-I connection, Electric connection
|
|
Continuous
working temperature
|
-20°C ~ +135°C (EPDM, Silicone)
|
|
Pressure
|
0~10bar
|
|
Machine Processing
|
The most advanced CNC machine from Japan for processing
|
|
Special Design
|
we can produce according to your drawings
|
